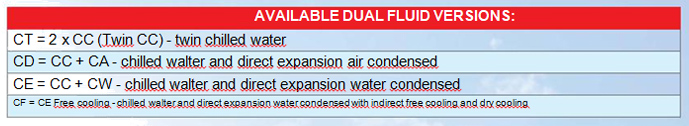

DUAL FLUID CLIMA PROCESSOR series is designed for Close Control air conditioning application where energy saving approach and redundancy criteria are required by using
different combination of heat exchangers. Designed for technical applcation like computers
rooms, data centers, digital telephone changers, swithc rooms, weather stations, museum, medical laboratories, diagnostic scanners as
well as any other application where the sensible heat needs to be dissipated. Design criteria is to minimize the footprint
and to assure full frontal access for easy inspection and service. Available with up and down flow version with a complete range of accessories.
Reduced noise level and fined tuned regolation by using scroll compressors and last generation of the EC plug-in radial fans.
Available with BLDC compressor. Customized solution available on request.

■ Painted galvanized steel cabinet
■ EC “Plug-in” centrifugal fan backward blades
■ Microprocessor control with LCD end user interface
■ Scroll or rotary Compressor
■ R410A refrigerant
■ EU 4 Air Filter
■ Full front inspection
■ Condensation: water cooled, remote air cooled
Options:
■ Re-heating systems: hot water, electric, hot gas
■ Humidity and dehumidity systems
■ Advanced microprocessor
■ Complete range of remote air cooled condensers
■ High ESP fans
■ BLDC compressor
■ RS485 card: Modbus, Ethernet, LON, BACnet
■ Alarms: Water, Filter, Fire, Smoke
■ Dampers: not return, insulation
■ Fresh air intake
■ Touch screen
■ Air delivery plenum
■ Adjustable basement
■ Air filters F5, F7
■ Special coils
■ Sandwich panels
■ Low noise insulation
■ Special colour
■ R134a or R407C refrigerant
■ Customized solution on demand
