Oral Chroma
Three major halitosis components are hydrogen sulfide, methyl mercaptan, and dimethyl sulfide. The OralChroma measures Volatile Sulfide Components (VSC) in the breath and separates them into the above three components. About 1000 sets of OralChroma have been supplied to dentists, universities, and laboratories in the world since 2002.
Separating halitosis into three major components with high precision
Since the OralChroma uses gas chromatography technology, causes of halitosis can be precisely analyzed to confirm breath odor diagnostics treatment.

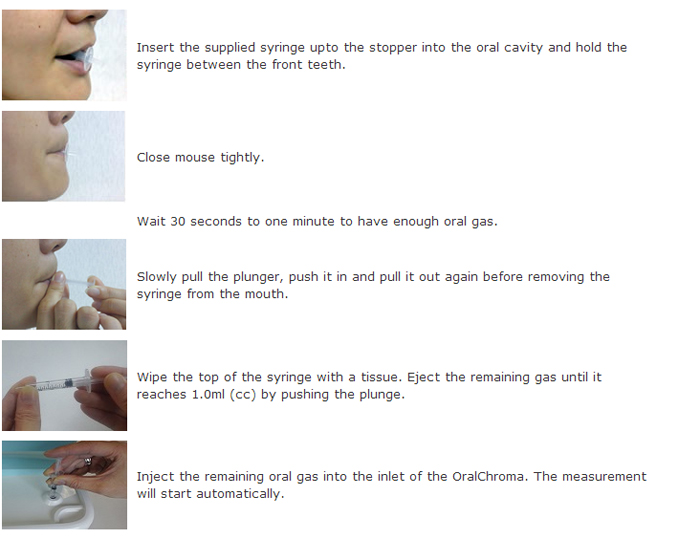

Simple breath sampling with a supplied syringe
Product
OralChroma OralChromaTM
Model
CHM-2
(Blue: CHM-2-BL, Pink: CHM-2-PK)
Detection method
Simple gas chromatography using semiconductor gas sensor
Sample amount
1.0cc
Detection gas
Following components included in volatile sulfur compounds:
- Hydrogen sulfide
- Methyl mercaptan
- Dimethyl sulfide
Measuring time
4 minutes
Measuring unit
ng/10ml and ppb
Sampling method
Manual sampling with a syringe
Operating humidity
80% RH or less (no condensation)
Operating temperature
10 to 30
Storage humidity
20 to 90% RH (no condensation)
Storage temperature
-20 to 60
Power supply
100 to 240V AC 50/60Hz
Power consumption
60VA
Size
280(W)×170(H)×385(D) (mm)
Weight
4kg
External connection
USB

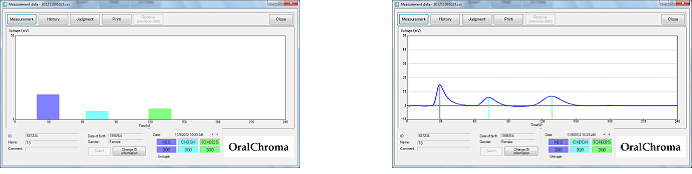

Attached software
OralChromaTMDataManager
